Guides

Creating a New Project

Android

Create a Flutter project called example with the flutter CLI:

bash

flutter create --org com.compdfkit.flutter example

In the terminal app, change the location of the current working directory to your project:

bash

cd example

open example/android/app/src/main/AndroidManifest.xml , add Internet Permission and Storage Permission:

diff

<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.compdfkit.flutter.example">

+    <uses-permission android:name="android.permission.INTERNET"/>

    <!-- Required to read and write documents from device storage -->
+    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE"/>
+    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>
+    <uses-permission android:name="android.permission.MANAGE_EXTERNAL_STORAGE"/>

		<application
+      android:requestLegacyExternalStorage="true">

    </application>
</manifest>

Open the app's Gradle build file, android/app/build.gradle:

bash

open android/app/build.gradle

Modify the minimum SDK version, All this is done inside the android section:

diff

 android {
     defaultConfig {
-        minSdkVersion flutter.minSdkVersion
+        minSdkVersion 21
         ...
     }
 }

Add the ComPDFKit dependency in pubspec.yaml

diff

 dependencies:
   flutter:
     sdk: flutter
+  compdfkit_flutter: ^1.13.0

From the terminal app, run the following command to get all the packages:

bash

flutter pub get

Open lib/main.dart and replace the entire content with the following code. And fill in the license provided to you in the ComPDFKit.init method, this simple example will load a PDF document from the local device file system.

dart

import 'dart:io';

import 'package:compdfkit_flutter/compdfkit.dart';
import 'package:compdfkit_flutter/cpdf_configuration.dart';

import 'package:flutter/material.dart';

const String DOCUMENT_PATH = 'pdfs/PDF_Document.pdf';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatefulWidget {
  const MyApp({super.key});

  @override
  State<MyApp> createState() => _MyAppState();
}

class _MyAppState extends State<MyApp> {
  @override
  void initState() {
    super.initState();
    _init();
  }

  void _init() async {
    /// Please replace it with your ComPDFKit license
    ComPDFKit.initialize(androidOnlineLicense : 'your compdfkit key', iosOnlineLicense : 'your compdfkit key');

    /// If you are using an offline certified license, please use init() method
    /// ComPDFKit.init('your compdfkit key')
  }

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
          body: SafeArea(
              child: Center(
        child: ElevatedButton(
            onPressed: () async {
              showDocument(context);
            },
            child: const Text(
              'Open Document',
              style: TextStyle(color: Colors.white),
            )),
      ))),
    );
  }

  void showDocument(BuildContext context) async {
    final bytes = await DefaultAssetBundle.of(context).load(DOCUMENT_PATH);
    final list = bytes.buffer.asUint8List();
    final tempDir = await ComPDFKit.getTemporaryDirectory();
    var pdfsDir = Directory('${tempDir.path}/pdfs');
    pdfsDir.createSync(recursive: true);

    final tempDocumentPath = '${tempDir.path}/$DOCUMENT_PATH';
    final file = File(tempDocumentPath);
    if (!file.existsSync()) {
      file.create(recursive: true);
      file.writeAsBytesSync(list);
    }
    var configuration = CPDFConfiguration();
    // How to disable functionality:
    // setting the default display mode when opening
    //      configuration.modeConfig = const ModeConfig(initialViewMode: CPreviewMode.annotations);
    // top toolbar configuration:
    // android:
    //      configuration.toolbarConfig = const ToolbarConfig(androidAvailableActions: [
    //           ToolbarAction.thumbnail, ToolbarAction.bota,
    //           ToolbarAction.search, ToolbarAction.menu
    //      ],
    //      availableMenus: [
    //        ToolbarMenuAction.viewSettings, ToolbarMenuAction.documentInfo, ToolbarMenuAction.security,
    //      ]);
    // iOS:
    //      configuration.toolbarConfig = const ToolbarConfig(
    //			// ios top toolbar left buttons
    //			iosLeftBarAvailableActions: [
    //          ToolbarAction.back, ToolbarAction.thumbnail
    //      ],
    //			// ios top toolbar right buttons
    //      iosRightBarAvailableActions: [
    //        ToolbarAction.bota, ToolbarAction.search, ToolbarAction.menu
    //      ],
    //      availableMenus: [
    //        ToolbarMenuAction.viewSettings, ToolbarMenuAction.documentInfo, ToolbarMenuAction.security,
    //      ]);
    // readerview configuration
    //      configuration.readerViewConfig = const ReaderViewConfig(linkHighlight: true, formFieldHighlight: true);
    ComPDFKit.openDocument(tempDocumentPath,
        password: '', configuration: configuration);
  }
}

Add the PDF documents you want to display in the project

create a pdf directory
bash
```
mkdir pdfs
```
1
Copy your example document into the newly created pdfs directory and name it PDF_Document.pdf

Specify the assets directory in pubspec.yaml

diff

 flutter:
+  assets:
+    - pdfs/

Start your Android emulator, or connect a device.
Run the app with:

bash

flutter run

iOS

Create a Flutter project called example with the flutter CLI:

bash

flutter create --org com.compdfkit.flutter example

In the terminal app, change the location of the current working directory to your project:

bash

cd example

Add the ComPDFKit dependency in pubspec.yaml

diff

 dependencies:
   flutter:
     sdk: flutter
+  compdfkit_flutter: ^1.13.0

From the terminal app, run the following command to get all the packages:

bash

flutter pub get

Open your project's Podfile in a text editor:

bash

open ios/Podfile

Note: If SSL network requests fail to download the ComPDFKit library when you run pod install, you can see the processing method in Troubleshooting.

Update the platform to iOS 11 and add the ComPDFKit Podspec:

diff

- platform :ios, '9.0'
+ platform :ios, '11.0'
 ...
 target 'Runner' do
   use_frameworks!
   use_modular_headers!`

   flutter_install_all_ios_pods File.dirname(File.realpath(__FILE__))
+  pod 'ComPDFKit_Tools', podspec:'https://www.compdf.com/download/ios/cocoapods/xcframeworks/compdfkit_tools/1.13.0.podspec'
+  pod 'ComPDFKit', podspec:'https://www.compdf.com/download/ios/cocoapods/xcframeworks/compdfkit/1.13.0.podspec'

 end

Go to the example/ios folder and run the pod install command:

bash

pod install

Open lib/main.dart and replace the entire content with the following code. And fill in the license provided to you in the ComPDFKit.init method, this simple example will load a PDF document from the local device file system.

dart

import 'dart:io';

import 'package:compdfkit_flutter/compdfkit.dart';
import 'package:compdfkit_flutter/cpdf_configuration.dart';

import 'package:flutter/material.dart';

const String DOCUMENT_PATH = 'pdfs/PDF_Document.pdf';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatefulWidget {
  const MyApp({super.key});

  @override
  State<MyApp> createState() => _MyAppState();
}

class _MyAppState extends State<MyApp> {
  @override
  void initState() {
    super.initState();
    _init();
  }

  void _init() async {
    /// Please replace it with your ComPDFKit license
    ComPDFKit.initialize(androidOnlineLicense : 'your compdfkit key', iosOnlineLicense : 'your compdfkit key');

    /// If you are using an offline certified license, please use init() method
    /// ComPDFKit.init('your compdfkit key')
  }

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
          body: SafeArea(
              child: Center(
        child: ElevatedButton(
            onPressed: () async {
              showDocument(context);
            },
            child: const Text(
              'Open Document',
              style: TextStyle(color: Colors.white),
            )),
      ))),
    );
  }

  void showDocument(BuildContext context) async {
    final bytes = await DefaultAssetBundle.of(context).load(DOCUMENT_PATH);
    final list = bytes.buffer.asUint8List();
    final tempDir = await ComPDFKit.getTemporaryDirectory();
    var pdfsDir = Directory('${tempDir.path}/pdfs');
    pdfsDir.createSync(recursive: true);

    final tempDocumentPath = '${tempDir.path}/$DOCUMENT_PATH';
    final file = File(tempDocumentPath);
    if (!file.existsSync()) {
      file.create(recursive: true);
      file.writeAsBytesSync(list);
    }
    var configuration = CPDFConfiguration();
    // How to disable functionality:
    // setting the default display mode when opening
    //      configuration.modeConfig = const ModeConfig(initialViewMode: CPreviewMode.annotations);
    // top toolbar configuration:
    // android:
    //      configuration.toolbarConfig = const ToolbarConfig(androidAvailableActions: [
    //           ToolbarAction.thumbnail, ToolbarAction.bota,
    //           ToolbarAction.search, ToolbarAction.menu
    //      ],
    //      availableMenus: [
    //        ToolbarMenuAction.viewSettings, ToolbarMenuAction.documentInfo, ToolbarMenuAction.security,
    //      ]);
    // iOS:
    //      configuration.toolbarConfig = const ToolbarConfig(iosLeftBarAvailableActions: [
    //          ToolbarAction.back, ToolbarAction.thumbnail
    //      ],
    //      iosRightBarAvailableActions: [
    //        ToolbarAction.bota, ToolbarAction.search, ToolbarAction.menu
    //      ],
    //      availableMenus: [
    //        ToolbarMenuAction.viewSettings, ToolbarMenuAction.documentInfo, ToolbarMenuAction.security,
    //      ]);
    // readerview configuration:
    //      configuration.readerViewConfig = const ReaderViewConfig(linkHighlight: true, formFieldHighlight: 		true);
    ComPDFKit.openDocument(tempDocumentPath,
        password: '', configuration: configuration);
  }
}

Add the PDF documents you want to display in the project

create a pdf directory
bash
```
mkdir pdfs
```
1
Copy your example document into the newly created pdfs directory and name it PDF_Document.pdf

Specify the assets directory in pubspec.yaml

diff

 flutter:
+  assets:
+    - pdfs/

To protect user privacy,

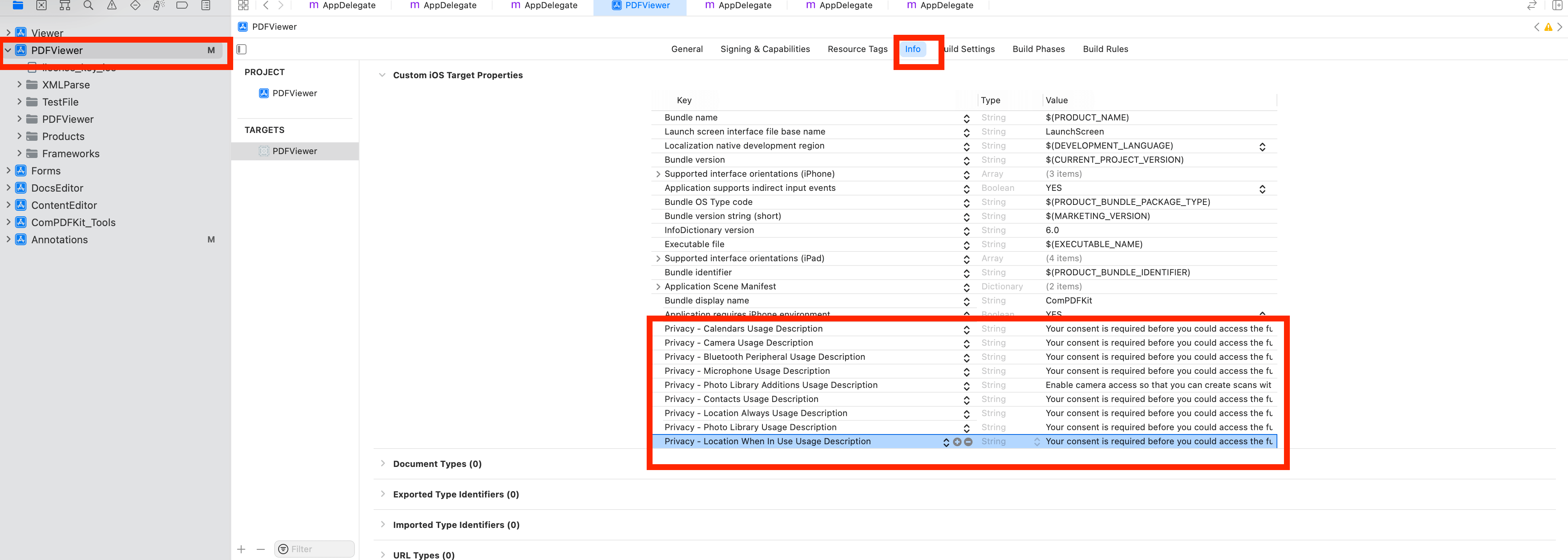

To protect user privacy, before accessing the sensitive privacy data, you need to find the "*Info*" configuration in your iOS 10.0 or higher iOS project and configure the relevant privacy terms as shown in the following picture.

objective-c

<key>NSCameraUsageDescription</key>
<string>Your consent is required before you could access the function.</string>

<key>NSMicrophoneUsageDescription</key>
<string>Your consent is required before you could access the function.</string>

<key>NSPhotoLibraryAddUsageDescription</key>
<string>Your consent is required before you could access the function.</string>

<key>NSPhotoLibraryUsageDescription</key>
<string>Your consent is required before you could access the function.</string>

<key>NSAppTransportSecurity</key>
	<dict>
		<key>NSAllowsArbitraryLoads</key>
		<true/>
	</dict>

Start your Android emulator, or connect a device.

bash

flutter emulators --launch apple_ios_simulator

Run the app with:

bash

flutter run
